Description

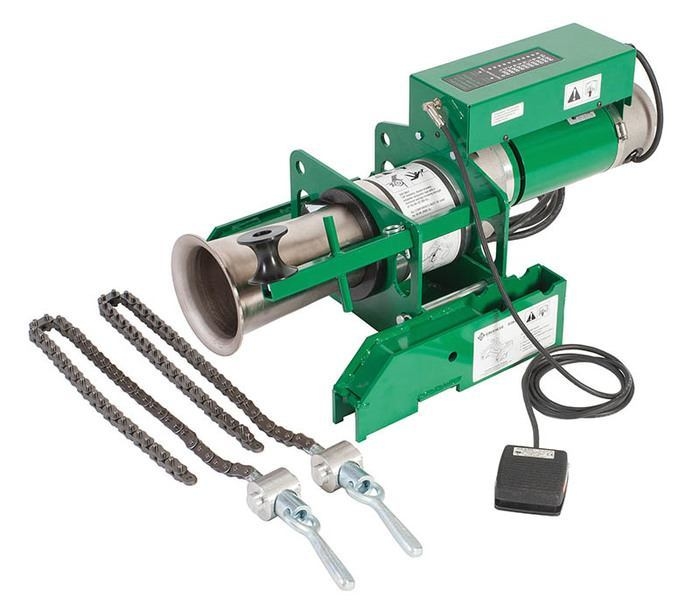

Sub Brand Name Name : Ultra Tugger Load : 0 – 6500.000 LB (0 – 28.900 KN) Continuous Operation, 6500.000 – 8000.000 LB (28.900 – 35.600 KN) 15 Minutes ON/15 Minutes OFF, 8000.000 – 10000.000 LB (35.600 – 44.500 KN) Momentary Cable Type : Electrical Cable Voltage Rating : 115 Volts Mounting : Chain Mount Prime Mover Specification : Required Rope: 7/8″ diameter, double-braided, polyester compositeAverage Breaking Strength: 143 kN (32,000 lb) minimum Type : Puller Assembly Application : Electrical Cable pull Capacity : The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB Amperage Rating : 20 Amp
To view a Brochure Click Here
