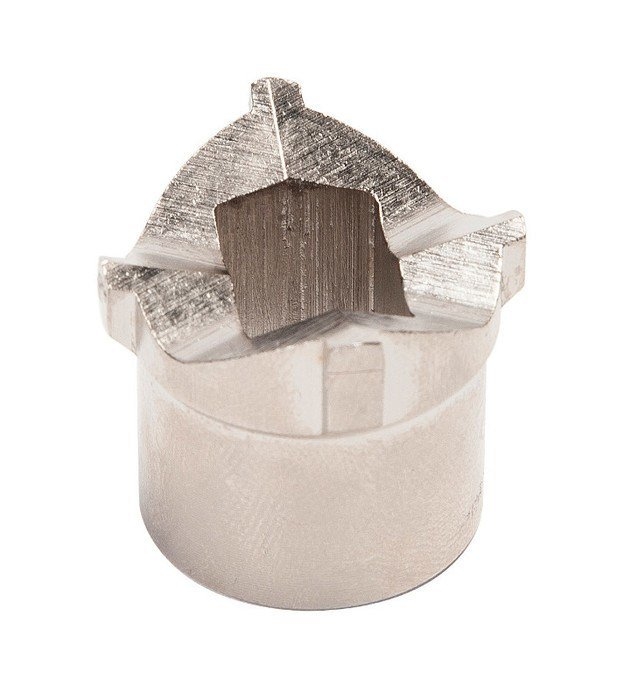

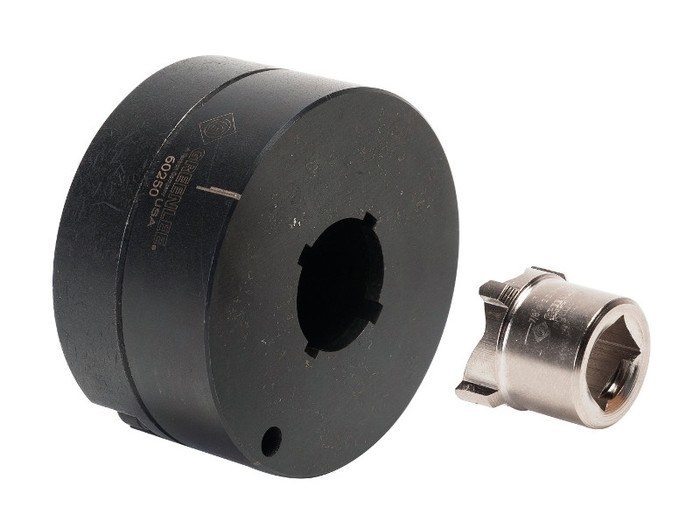

PUNCH, SPEED, OILTIGHT 7/8″

$363.00

For punching holes in mild steel, aluminum, brass, copper, fiberglass and plastics For use with new Greenlee KRW-1 high-leverage ratchet wrench Slug-Buster® punch profile splits slugs for easy slug removal Knurled edge on punches for better grip knockout set features new die design optimized for widest range of materials and drivers Laser markings for quick part identification. Alignment markings for improved accuracy Easy threading – draw studs with “dog point” tip helps eliminate cross-threading Punches, dies and case made in the USA
To view more info on the Greenlee site Click Here

SKU: GRN-7212SP-PB22P Categories: , , , Tag:

Description

Application : For punching notched mounting holes (used with push buttons, selector switches, indicator lights and emergency stops) in mild steel, aluminum, fiberglass, and plastic. Capacity Mild Steel : Max: 12 gauge (2.5 mm). Diameter : Actual hole size: 22.5 mm (7/8”) Draw Stud : Std. Draw Stud: 7212SP32 (3/8” X 4.00”). Driver : Use with Greenlee Punch Drivers: LS50L – Battery-Powered Driver or Hydraulic Drivers: 10383 – QUICK DRAW&#174 FLEX, 34288 – QUICK DRAW&#174 STANDARD, 33786G – QUICK DRAW 90&#174. Material : Carbon-Alloy Steel, Nickel Plated Minimum Pilot Hole : 5/8” (15.9 mm) Operation : Must be used with other SPEED PUNCH&#174 System components. Sub Brand : SPEED PUNCH&#174 Type : Knockout Punches Weight : 0.20 lbs. (0.09 kg)
To view an Operator’s Manual Click Here
To view a Brochure Click Here

Additional information

Weight 0.16 lbs
Dimensions 3.7 × 3.6 × 3.7 in
Catalog #

7212SP-PB22P
Material #

52066035
UPC/Ean #

7.8331E+11
Sold in Quantities of

1
