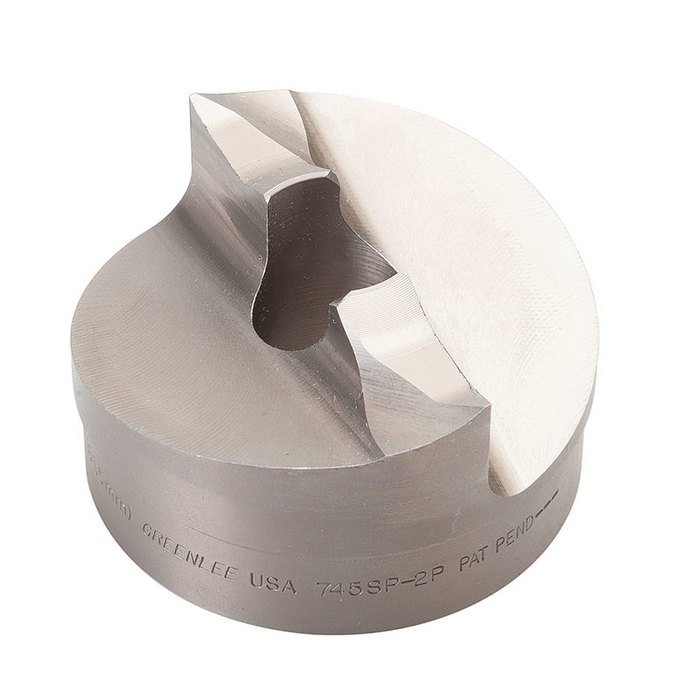

PUNCH-RD, COND,SPEED, SS 2″

$541.90

For Use With Greenlee 746 Hydraulic Ram Cuts in 7 seconds Jaws slide open quickly to save time between cuts 11-ton (97 kN) ram powers cutting jaws Jaws are specially hardened and precision-ground to hold sharpness Lightweight and easy to use
To view more info on the Greenlee site Click Here

SKU: GRN-745SP-2P Categories: , , , Tag:

Description

Application : For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic. Capacity Mild Steel : Max: 10 gauge (3.0 mm). Capacity Stainless Steel : Max: 10 gauge (3.0 mm). Diameter : Actual hole size: 2.416” (61.4 MM) Draw Stud : Std. Draw Stud: 7212SP23 (3/4” X 5.00”) Draw Studs : Alt. Draw Stud (Long): 7212SP21 (3/4” x 5.83”) – For use with 746 Hydraulic Ram. Driver : Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L – Battery-Powered Driver up to max. 12 ga. stainless steel). Material : Tool Steel Minimum Pilot Hole : 7/8” (22.2 mm) Operation : Must be used with other SPEED PUNCH&#174 System components. Sub Brand : SPEED PUNCH&#174 Type : Knockout Punches Weight : 1.20 lbs. (0.55 kg)
To view an Operator’s Manual Click Here
To view a Brochure Click Here

Additional information

Weight 1.19 lbs
Dimensions 3.7 × 3.6 × 3.8 in
Catalog #

745SP-2P
Material #

52066017
UPC/Ean #

7.8331E+11
Sold in Quantities of

1
