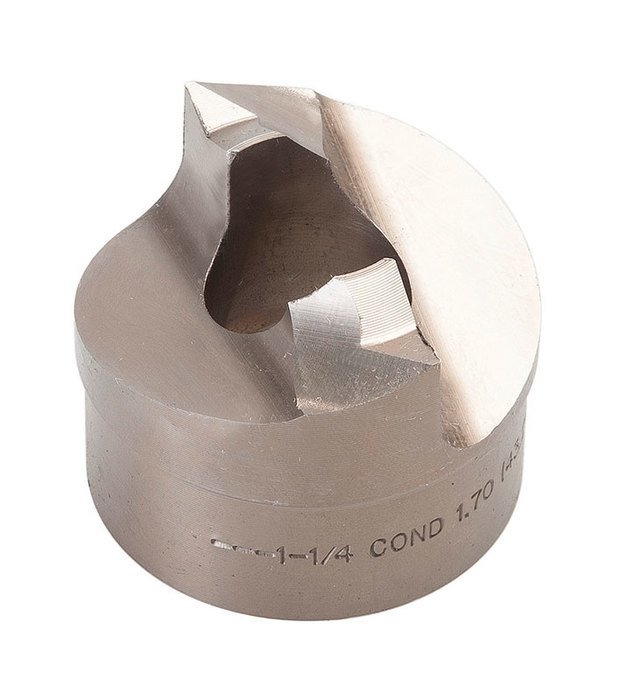

PUNCH-RD COND SPEEDSS 1-1/4″

$330.00

Use with Greenlee knockout punches, dies and draw studs for punching holes in mild steel, stainless steel, brass, copper, aluminum, fiberglass and plastics
To view more info on the Greenlee site Click Here

SKU: GRN-745SP-1-1/4P Categories: , , , Tag:

Description

Application : For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic. Capacity Mild Steel : Max: 10 gauge (3.0 mm). Capacity Stainless Steel : Max: 10 gauge (3.0 mm). Diameter : Actual hole size: 1.701” (43.2 MM) Draw Stud : Std. Draw Stud: 7212SP23 (3/4” X 5.00”). Draw Studs : Alt. Draw Stud (Long): 7212SP21 (3/4” x 5.83”) – For use with 746 Hydraulic Ram. Driver : Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L – Battery-Powered Driver up to max. 12 ga. stainless steel). Material : Tool Steel Minimum Pilot Hole : 7/8” (22.2 mm) Operation : Must be used with other SPEED PUNCH&#174 System components. Sub Brand : SPEED PUNCH&#174 Type : Knockout Punches Weight : 0.55 lbs. (0.25 kg)
To view an Operator’s Manual Click Here
To view a Brochure Click Here

Additional information

Weight 0.56 lbs
Dimensions 3.8 × 3.7 × 3.8 in
Catalog #

745SP-1-1/4P

Material #

52066013

UPC/Ean #

7.8331E+11

Sold in Quantities of

1
