Description

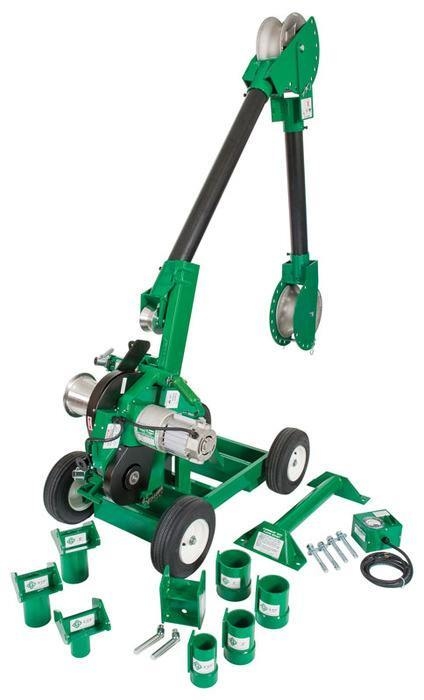

Sub Brand : Super Tugger Load : 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous Cable Type : Electrical cable Voltage Rating : 125 Volts Mounting : Floor mount / Chain mount / Boom mount Prime Mover Specification : Double-Braided Composite Rope 3/4 IN Includes : 6001 Super Tugger, Floor Mount, Mobile Carriage, Boom Mount, 4.000 FT Boom Tube, Nose Unit, 3.000 FT Boom Tube, Elbow Unit, 2-1/2 IN, 3.000 IN, 3-1/2 IN, 4.000 IN Slip-In And Screw-On Couplings And Storage Trays Standard : Super Tugger Cable Puller Power Unit, Includes force gaugeand vise chains Type : Puller Assembly Accessory : 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M) Application : Electrical Cable pull Capacity : No load : 5 m/min (16.5 ft/min)8900 newtons (2000 lb) : 3.4 m/min (11 ft/min)17.8 kN (4000 lb) : 2.3 m/min (7.5 ft/min) Drive Motor : 1-1/2 hp, 120 VAC, 16 Hz, 20 Amp Pulling Force : 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000LB (115.600 KN) Pulling Speeds : 16.5 FTPM At No Load, (8.800 KN) – 11 (3.4) At 2000 LB, (17.900 KN) – 7.5 (2.3) At 4000 LB, (26.700 KN) – 6 (1.8) At 6000 LB
To view an Operator’s Manual Click Here
