Description

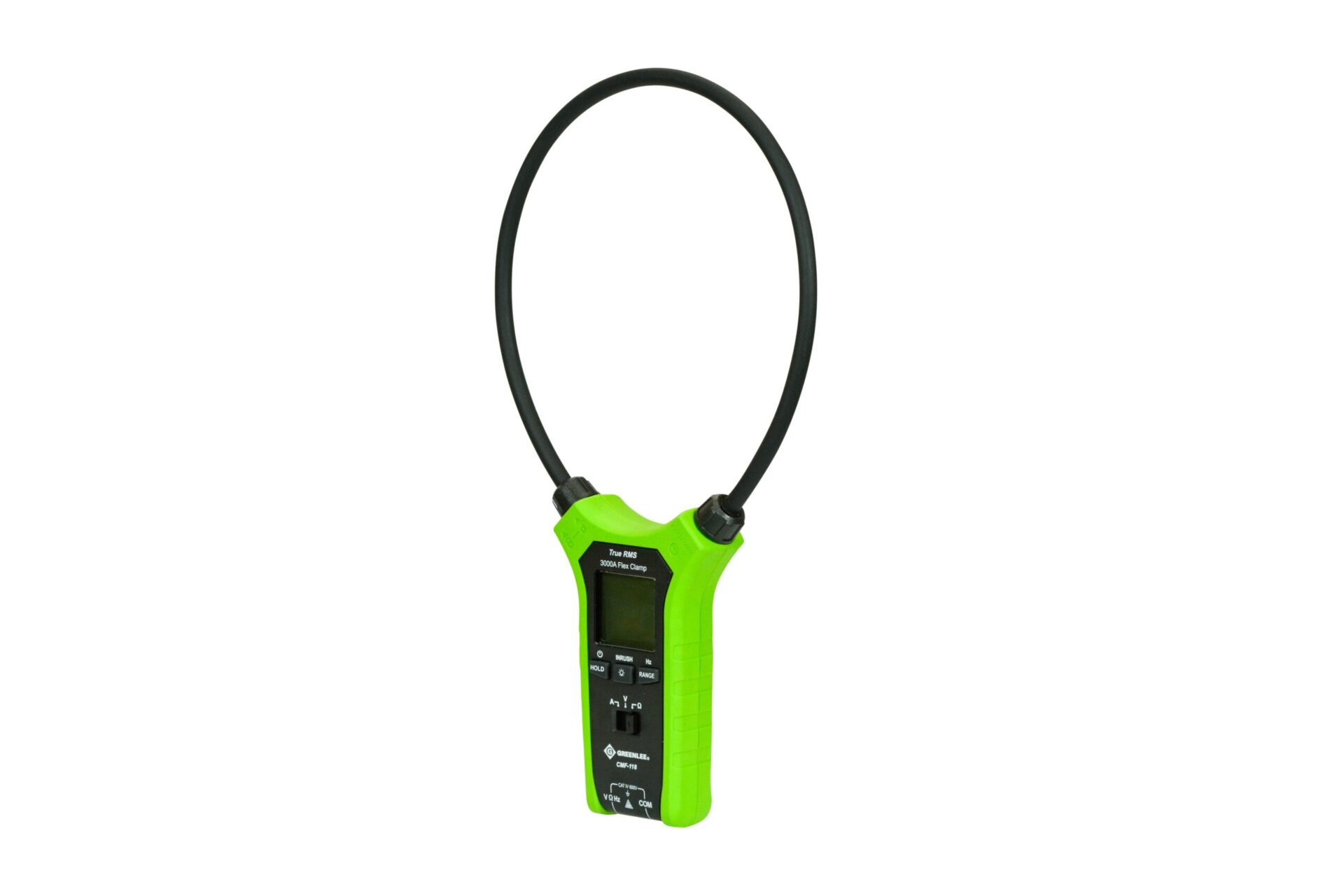

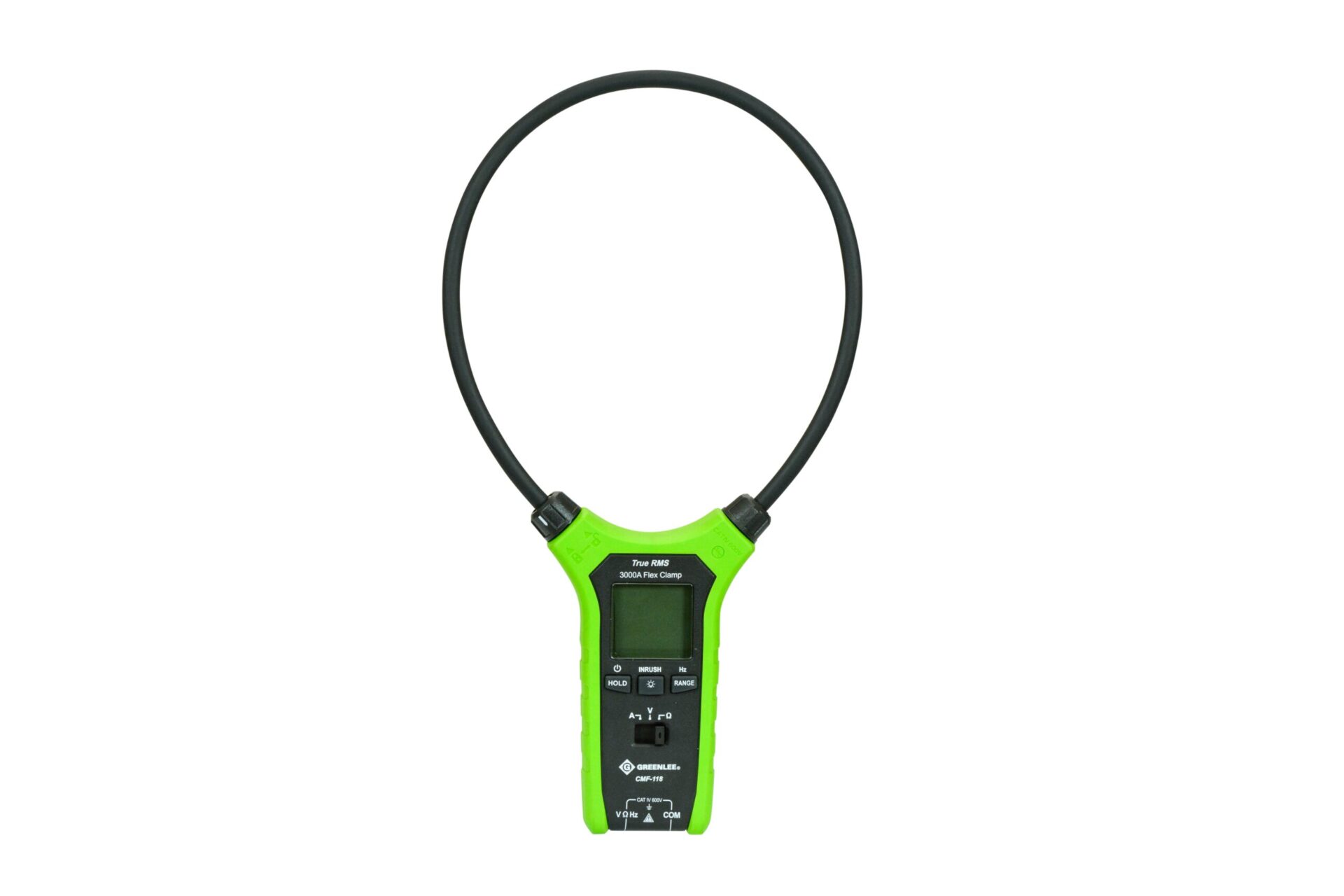

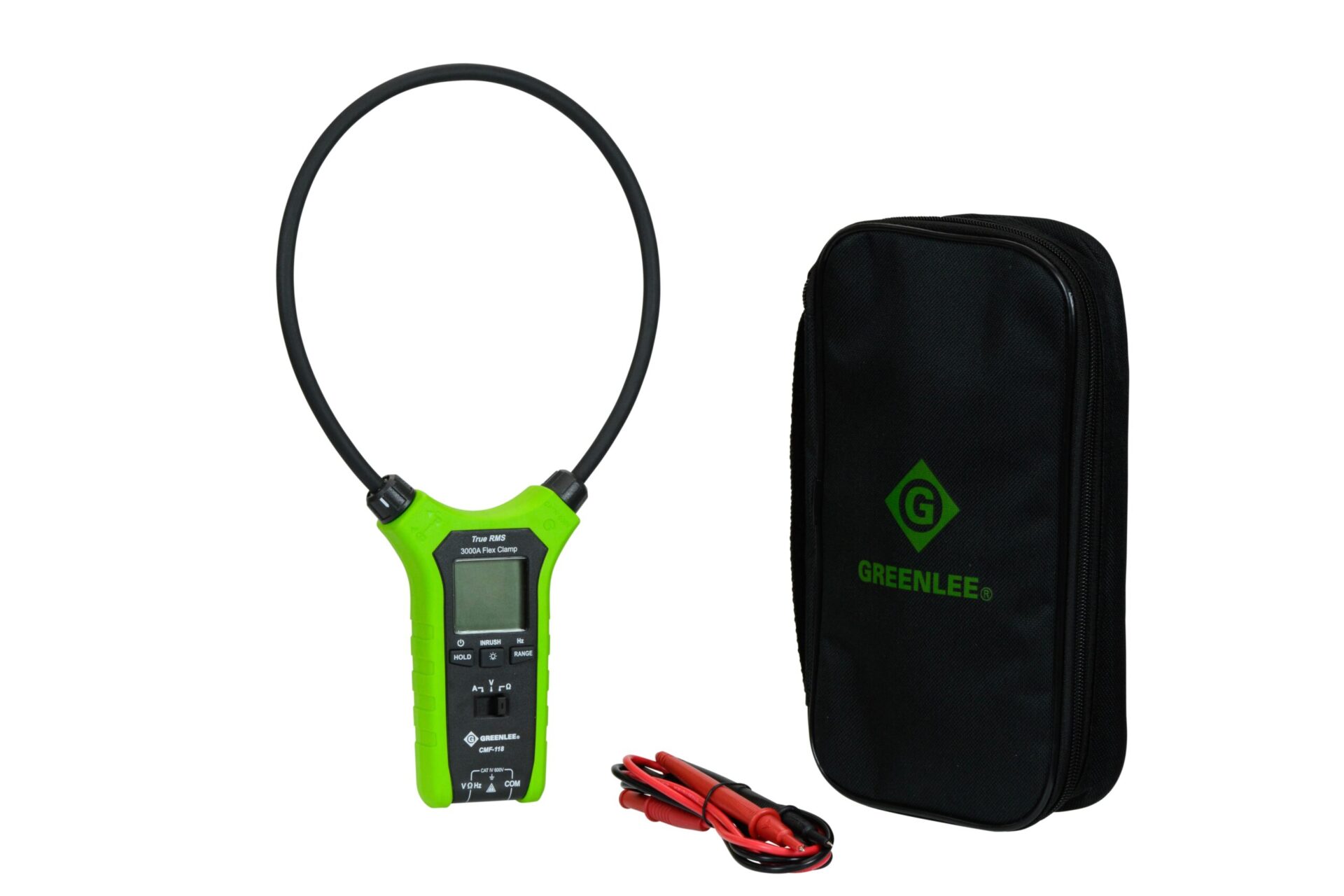

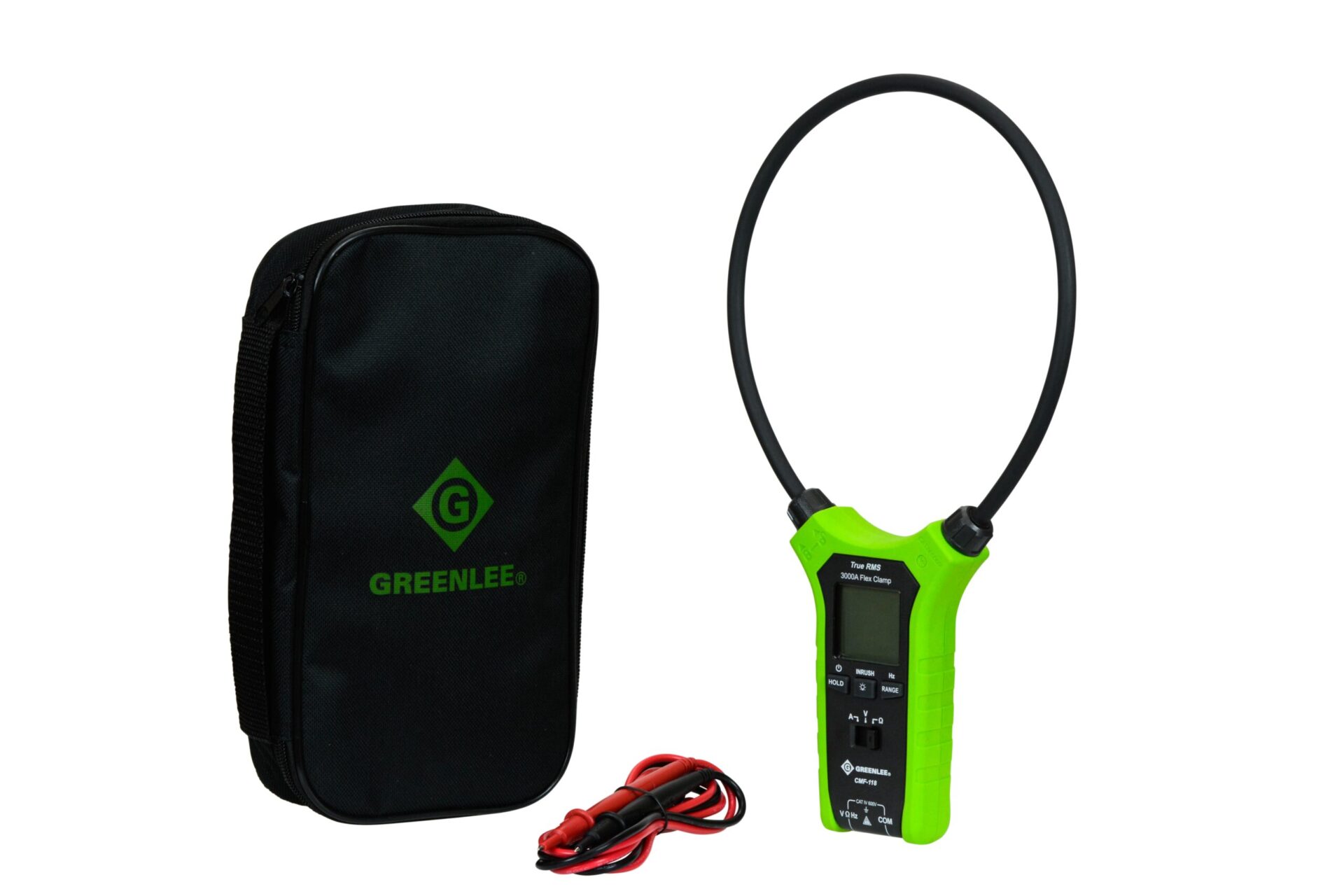

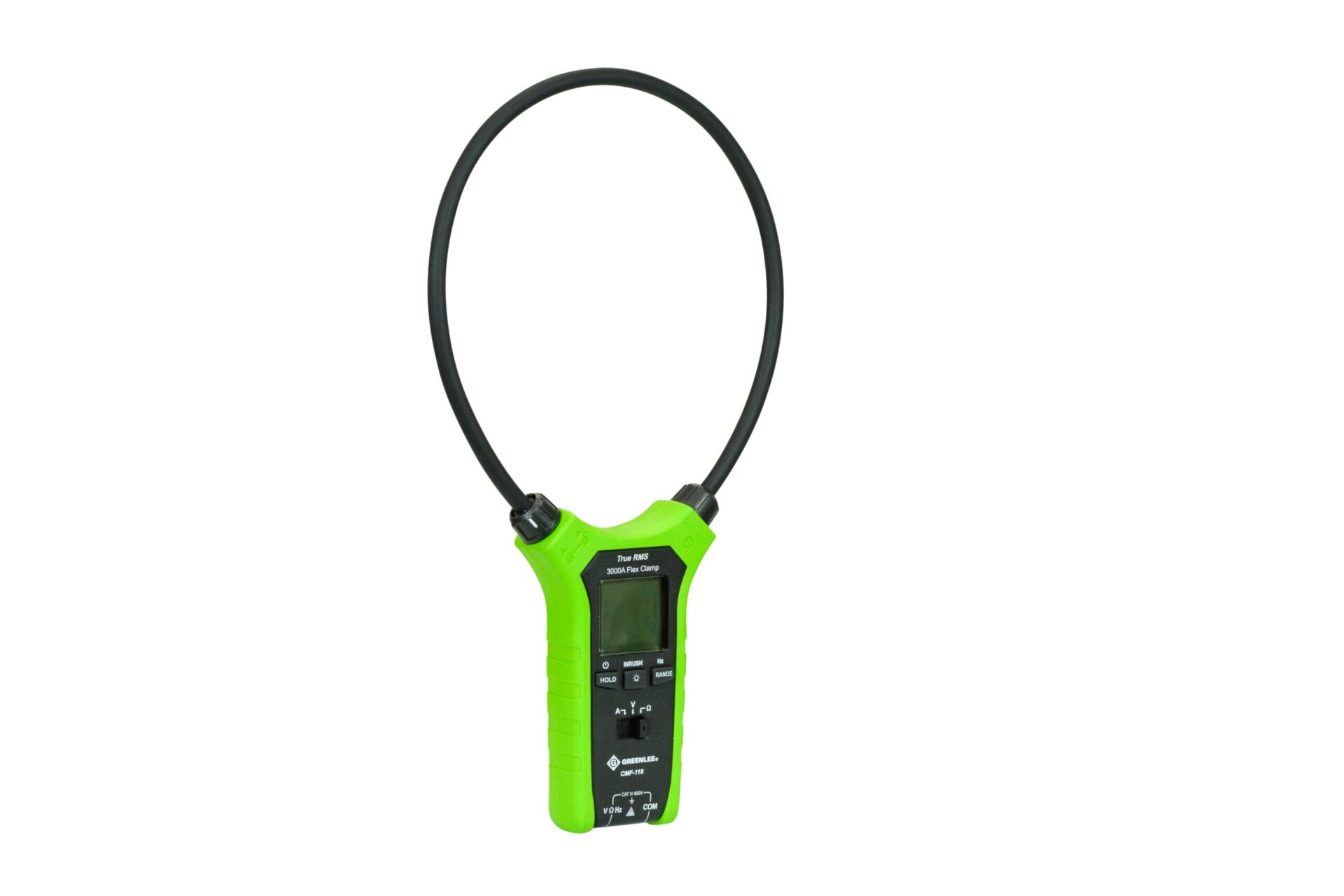

Type : 18″ Flex Clamp Meter Standard : Compliance: CE, CETLUS Voltage Rating : 6V/60V/600V Amperage Rating : 30A/300A/3000A Frequency Rating : 20 – 30kHz Accuracy Voltage : ±1.2% + 300mV Accuracy Amperage : ±3% + 5A Display : LCD Operating Temperature : 0 to 50°C Coil Diameter : 18 in. (45.7 cm) Resistance : 60.0MΩ Inrush Current : 80ms, minimum: 3.0A Safety Category Rating : CAT IV 600V Replacements : Test Lead Replacement Kit (CMF-LK) and Replacement Carrying Case (CMF-B) also available.
To view an Operator’s Manual Click Here
To view a Catalog Sheet Click Here
