Description

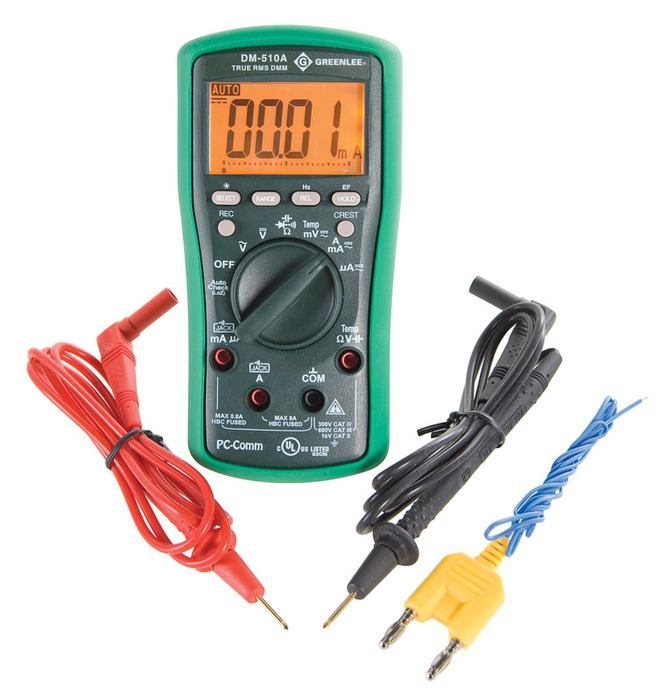

Amperage Measurement : 600, 6000μA; 60, 600mA; 6, 8A Battery : (2) 1.5 V AAA Capacitance : 60, 600 nF; 6, 60, 600, 3000μF Display : Backlit LCD With 6,000 Count Frequency Measurement : 10Hz – 50kHz Sine Wave, 5Hz – 999.9kHz Logic Level Square Wave Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400°F/204°C max), Test leads, ProtectiveBoot Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V Replacement Part : TSG-3 Sure-Grip Test Leads Resistance Measurement : 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ Standard : CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed Sub Brand : ESM Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C) Type : Professional Plant Digital Voltage Measurement : 60, 600 mV, 6, 60, 600, 1000V
To view an Operator’s Manual Click Here
To view an Operator’s Manual Click Here
