Description

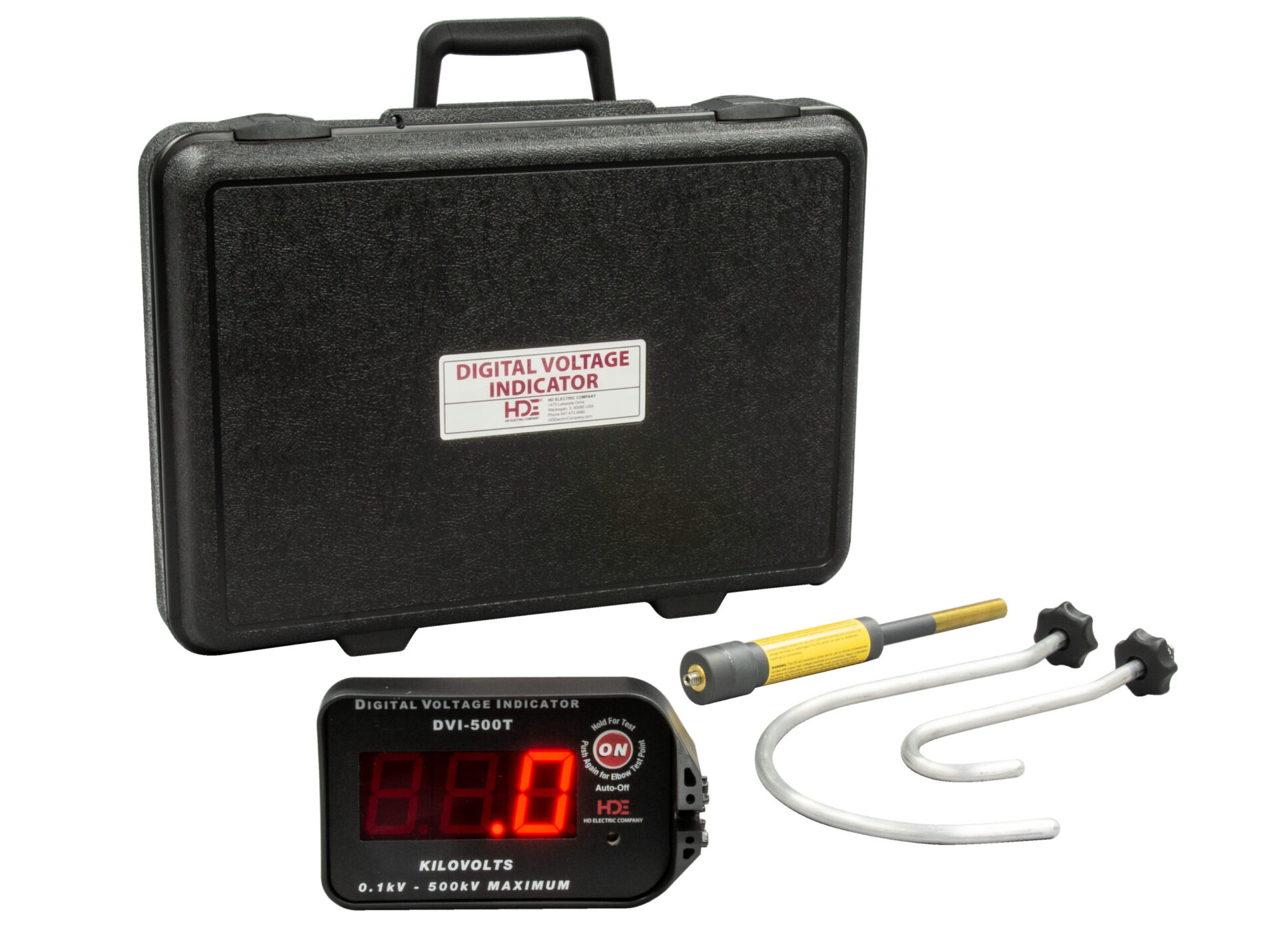

Sub Brand : HDE Type : Digital Voltage Indicator Model : DVI-500T Voltage Rating : 100V – 500kV line-to-ground Accuracy : Laboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25% Display : LED display Operating Temperature : -20°F to +140°F (-29°C to +60°C) Dimensions : 4.25″H x 7″W x 4.5″D (11 cm x 18 cm x 11 cm) Frequency Rating : AC 60Hz (50Hz model available) Included : DVI-500, HP-DVI-2 2″ Overhead Hook Probe, HP-DVI-6 6″ Overhead Hook Probe, IEP-DVI-5 underground bushing probe, CS-DVI plastic case
To view a Brochure Click Here
