Description

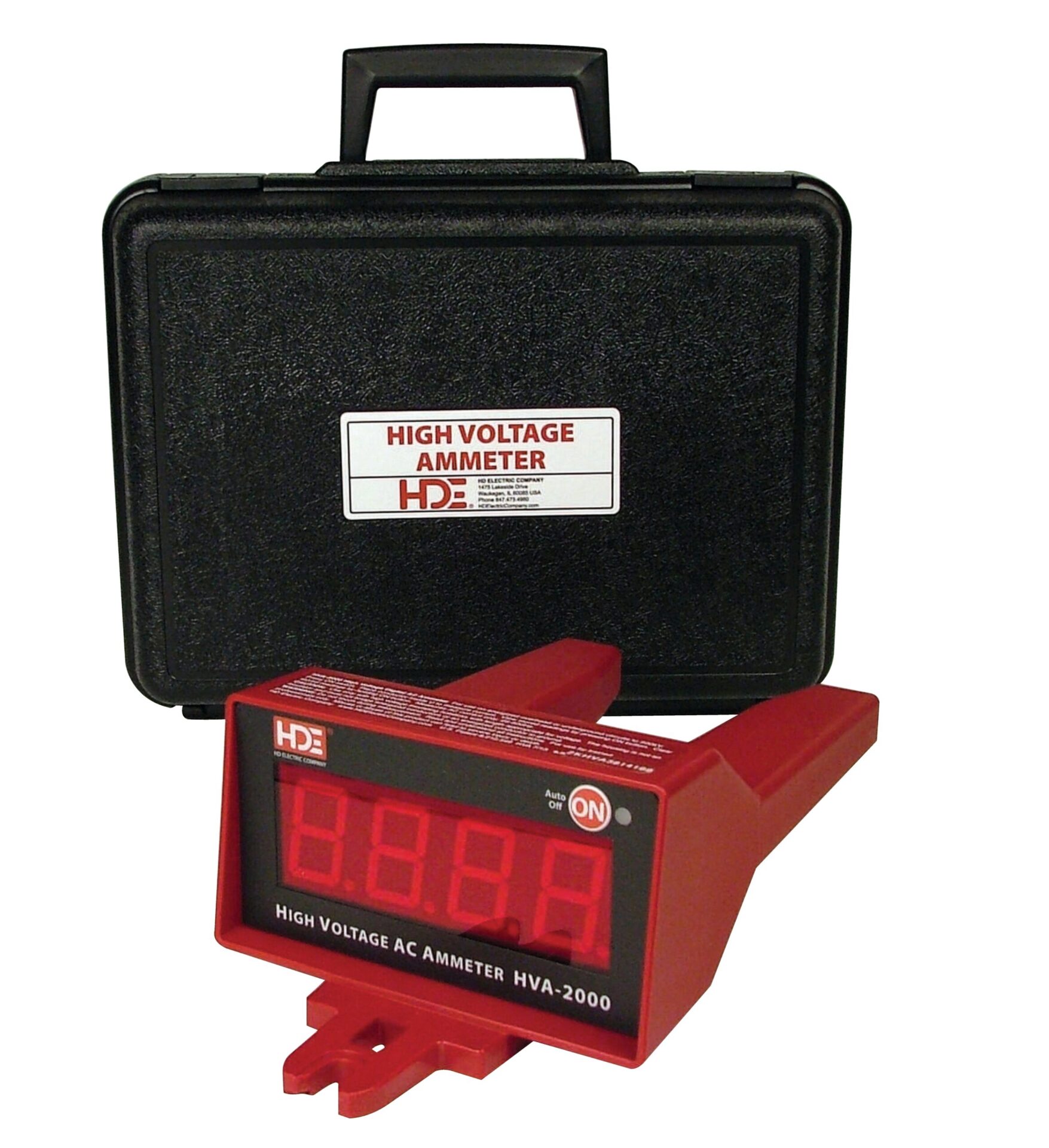

Sub Brand : HDE Type : Ammeter Model : HVA-2000 Voltage Rating : 0 – 500kV line-to-ground Amperage Rating : 1 -2000A Accuracy : 50-60Hz – 1–10A – 1% +/-2 counts, 11–100A – 1% +/-3 counts, 101–500A – 1% +/-6 counts, 501–2000A – 1% +/-8. 252-49Hz and 61-500Hz – 1–10A – 2% +/-3 counts, 11–100A – 2% +/-4 counts, 101–500A – 2% +/-6 counts, 501–2000A – 2% +/-8 counts Display : LED display Operating Temperature : -20°F to +140°F (-29°C to +60°C) Dimensions : 4”H x 6.6”W x 11.5”L Frequency Rating : 25 – 500Hz Included : HVA-2000 Ammeter, CS-HVA Carrying Case
To view a Brochure Click Here
