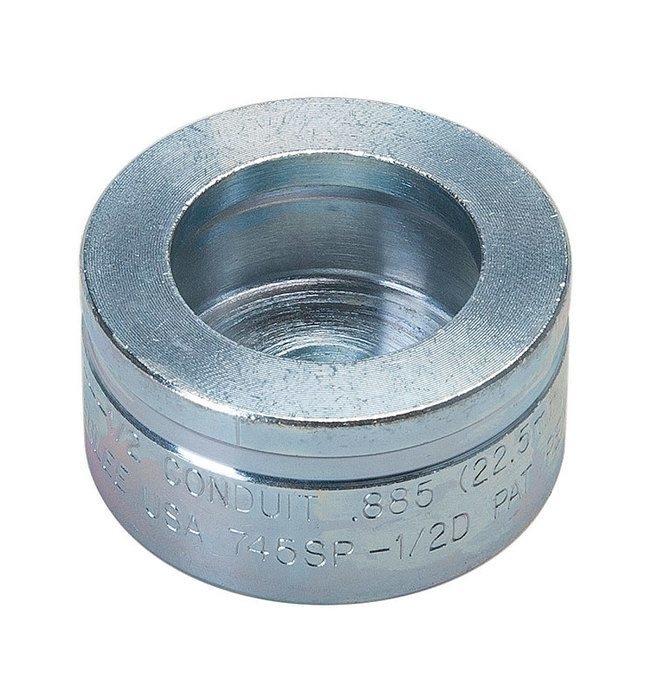

DIE,COND,SPEED,SS 1/2 (22.5MM)

Description

Application : For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic. Capacity Mild Steel : Max: 10 gauge (3.0 mm). Capacity Stainless Steel : Max: 12 gauge (2.5 mm). Diameter : Actual hole size: 0.885” (22.5 MM) Draw Stud : Std. Draw Stud: 7212SP24 (3/8” X 3.82”) Draw Studs : Alt. Draw Stud (Long): 7212SP22 (3/8” x 4.69”) – For use with 746 Hydraulic Ram. Driver : Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L – Battery-Powered Driver up to max. 12 ga. stainless steel). Material : Carbon-Alloy Steel, Zinc Plated Minimum Pilot Hole : 1/2” (12.7 mm) Operation : Must be used with other SPEED PUNCH&#174 System components. Sub Brand : SPEED PUNCH&#174 Type : Knockout Punches Weight : 0.25 lbs. (0.11 kg)
