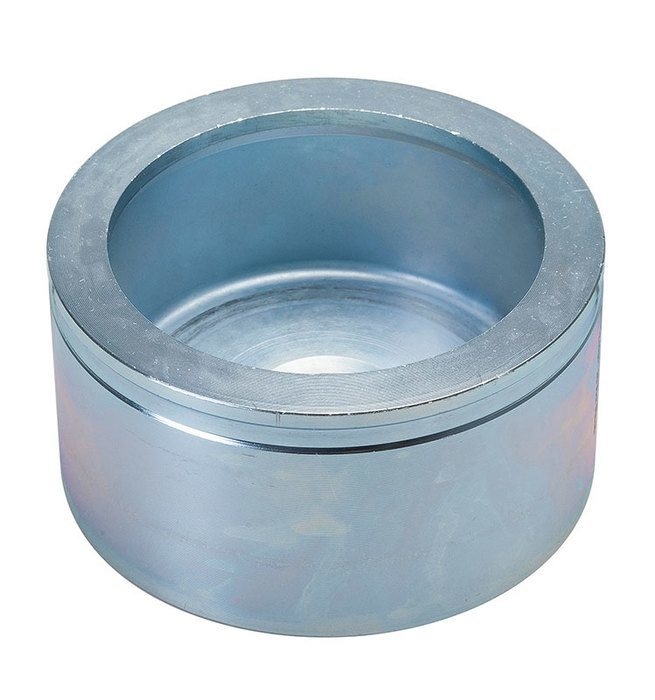

DIE, COND, SPD, SS 2″ (61.5MM)

$155.30

Hydraulic Cuts in 7 seconds Jaws slide open quickly to save time between cuts 11-ton (97 kN) ram powers cutting jaws. Jaws are specially hardened and precision-ground to hold sharpness Lightweight and easy to use
To view more info on the Greenlee site Click Here

SKU: GRN-745SP-2D Categories: , , , Tag:

Description

Application : For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic. Capacity Mild Steel : Max: 10 gauge (3.0 mm). Capacity Stainless Steel : Max: 10 gauge (3.0 mm). Diameter : Actual hole size: 2.416” (61.4 MM) Draw Stud : Std. Draw Stud: 7212SP23 (3/4” X 5.00”). Draw Studs : Alt. Draw Stud (Long): 7212SP21 (3/4” x 5.83”) – For use with 746 Hydraulic Ram. Driver : Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L – Battery-Powered Driver up to max. 12 ga. stainless steel). Material : Carbon-Alloy Steel, Zinc Plated Minimum Pilot Hole : 7/8” (22.2 mm) Operation : Must be used with other SPEED PUNCH&#174 System components. Sub Brand : SPEED PUNCH&#174 Type : Knockout Punches Weight : 1.70 lbs. (0.77 kg)
To view an Operator’s Manual Click Here
To view a Brochure Click Here

Additional information

Weight 1.71 lbs
Dimensions 3.75 × 3.75 × 3.75 in
Catalog #

745SP-2D
Material #

52066018
UPC/Ean #

7.8331E+11
Sold in Quantities of

1
