Description

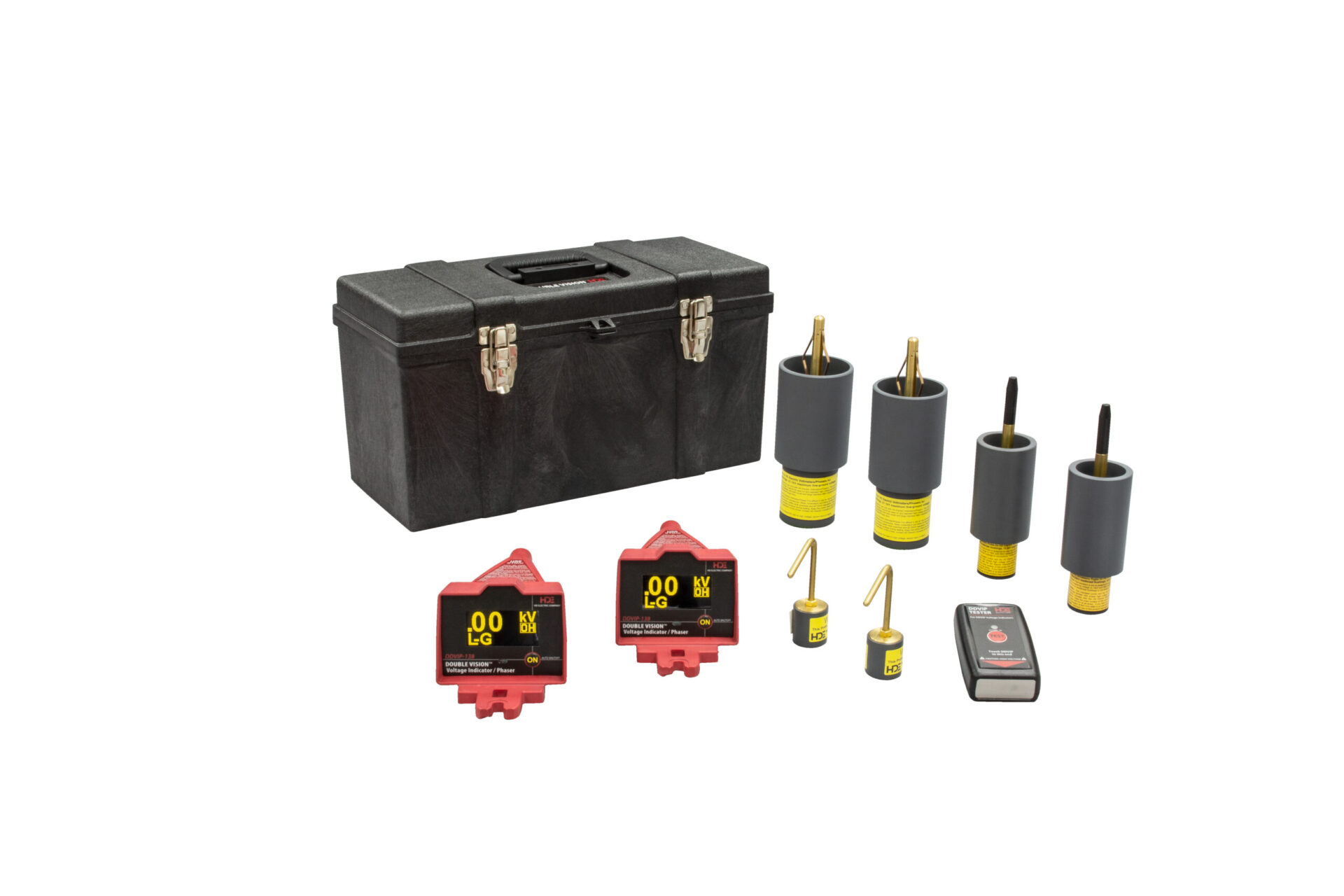

Sub Brand : HDE Type : Voltage Indicator & Phasing set Model : DDVIP-138 Voltage Rating : 100V – 138kV line-to-line, 100V – 80kV line-to-ground Accuracy : Within 15%, dependent on geometry Display : Two LED displays with 0.7″ numeral height. Displays 3 digits Operating Temperature : -20°F to +120°F (-29°C to +49°C) Dimensions : 14″ L x 4.6″ W x 4.1″ H (36 cm x 12 cm x 10 cm) Frequency Rating : AC 50/60Hz Phase Indication : In-Phase/Out-of-Phase Included : DDVIP-138, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), ASP-15-25 (2), ASP-35U 35kV UG Bushing Probe (2), PT-DDVIP Proof Tester, CS-DDVM Case
To view a Brochure Click Here
