Description

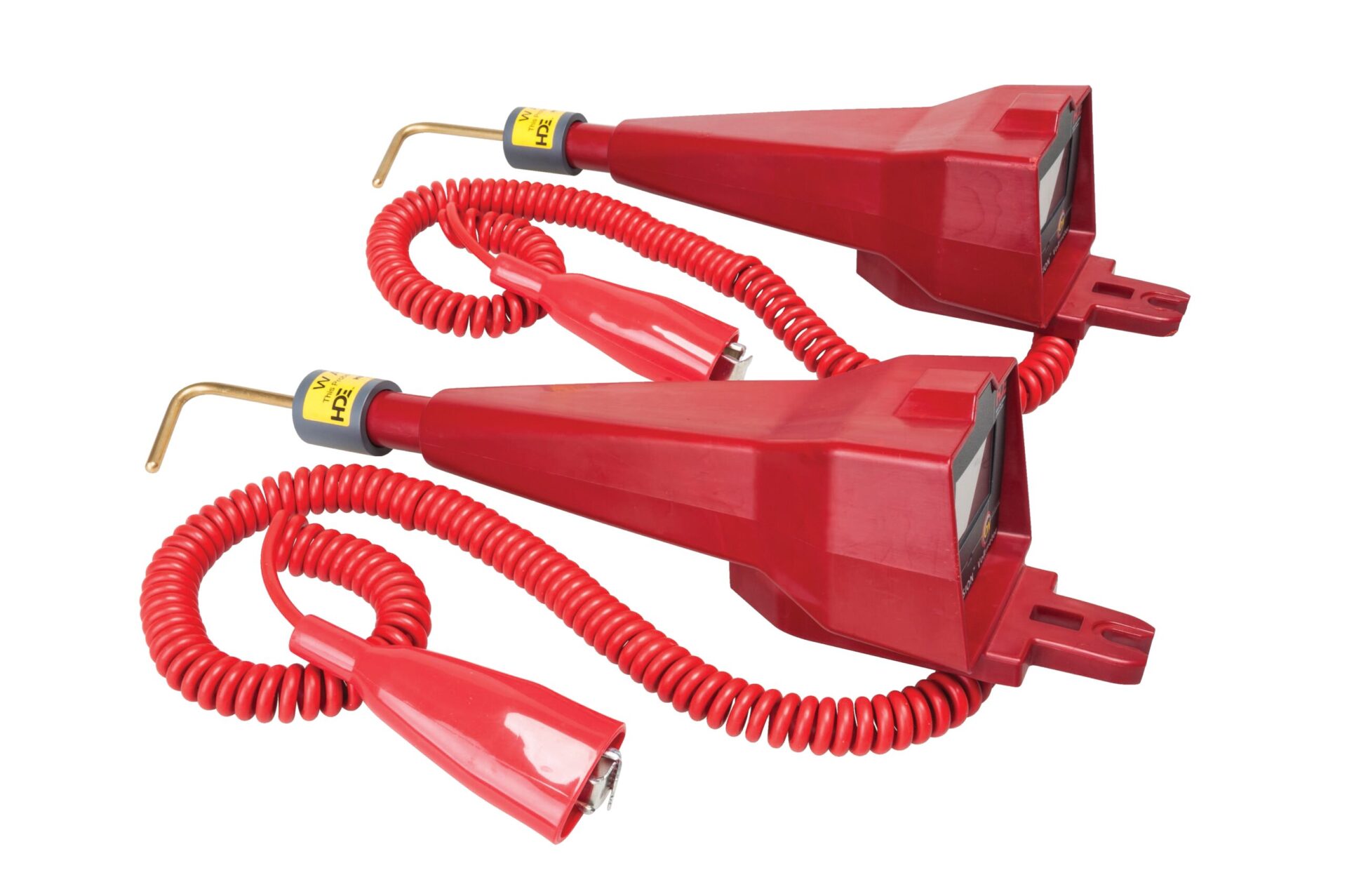

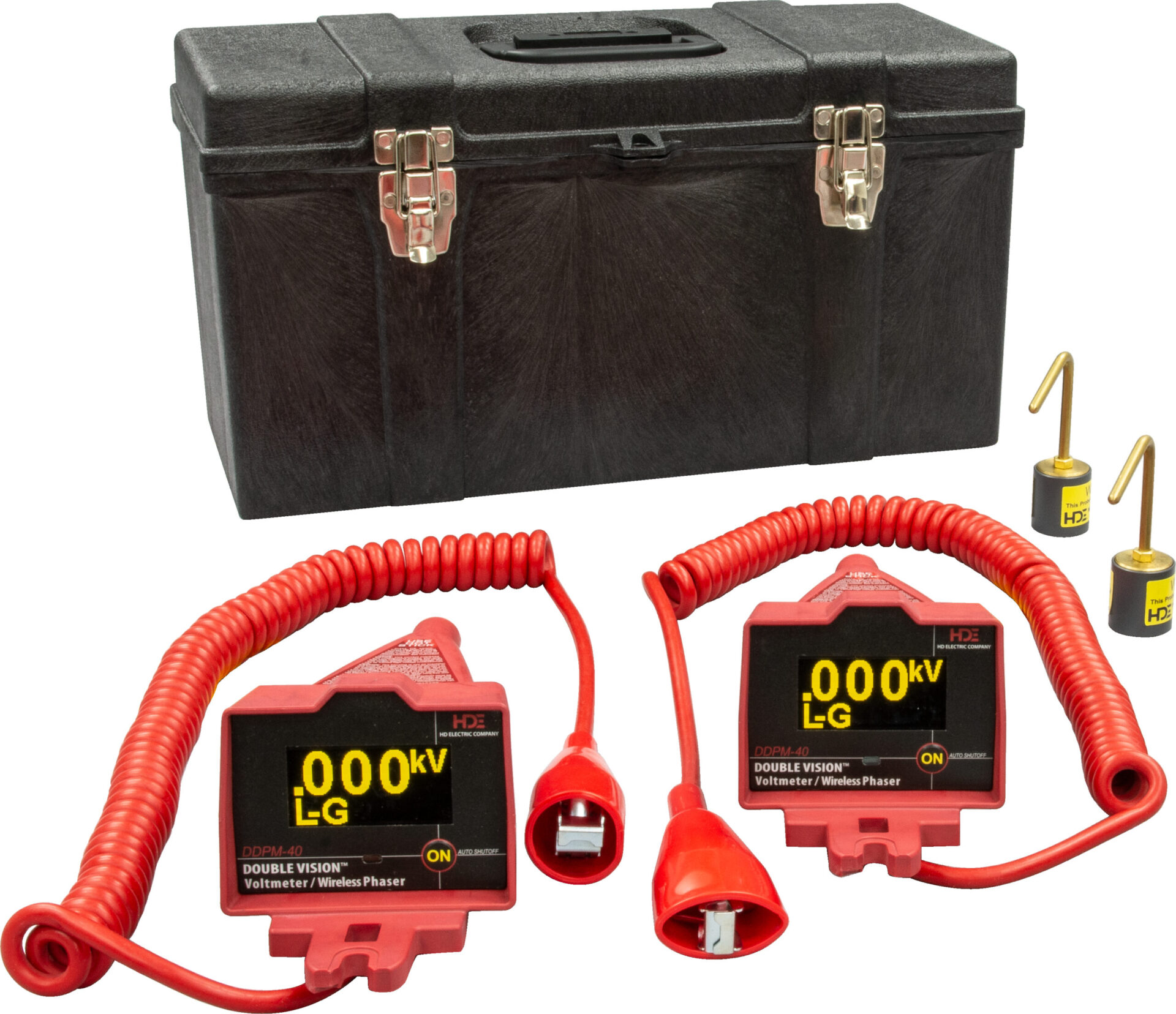

Sub Brand : HDE Type : Voltmeter & Phasing set Model : DDPM-40 Voltage Rating : 5V – 43kV line-to-line, 5V – 25kV line-to-ground Accuracy : Within 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements) Display : Two LED displays with 0.7″ numeral height. Displays 3 digits Operating Temperature : -20°F to +120°F (-29°C to +49°C) Dimensions : 14″ L x 4.1″ H x 4.6″ W (36 cm x 10 cm x 12 cm) without probes Frequency Rating : 25 – 1000Hz AC/DC Phase Indication : Phase Angle Included : DDPM-40, (2) 025-0LPS-5 Overhead Brass Hook Probes (2), CS-DDVM Case
To view a Brochure Click Here
