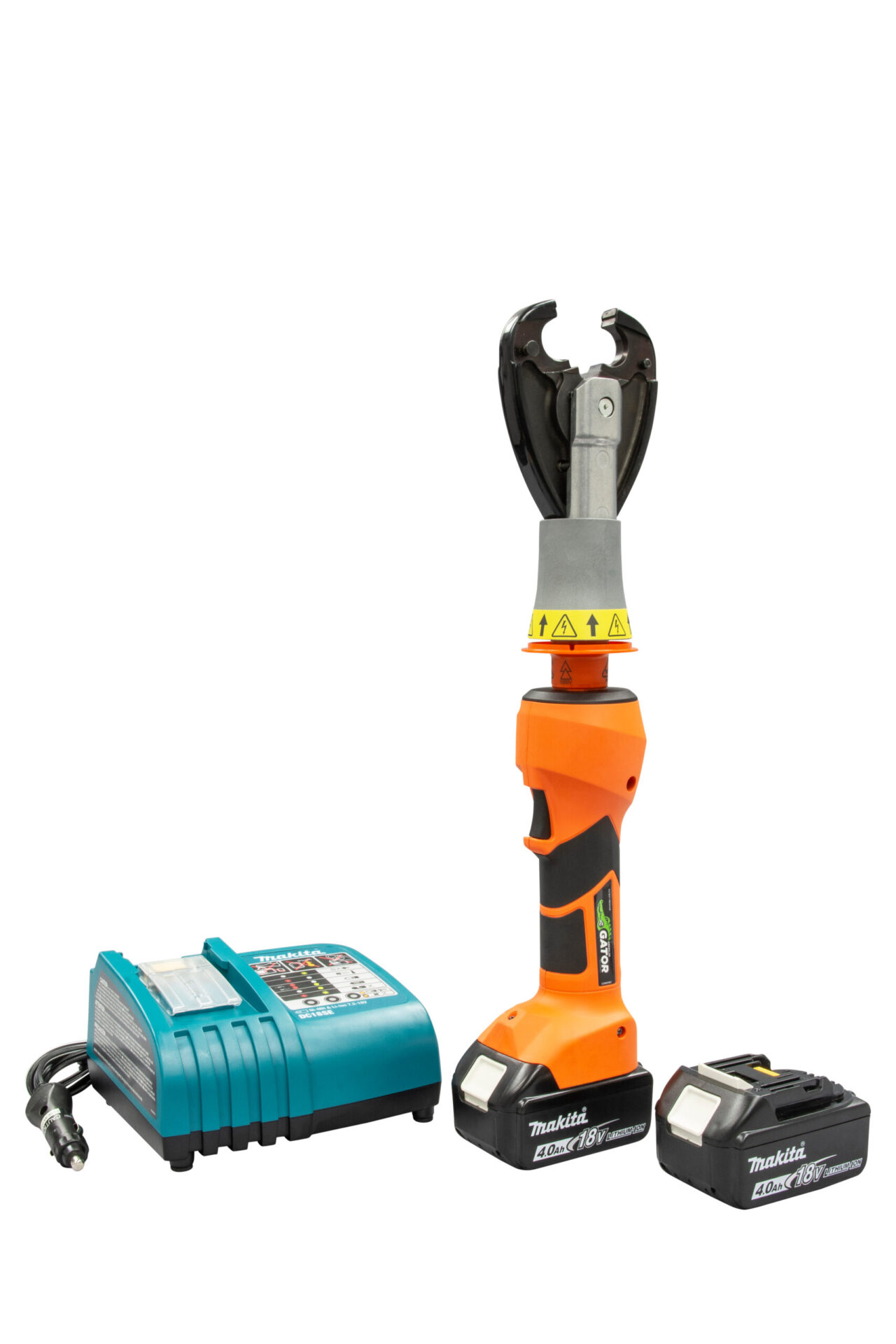

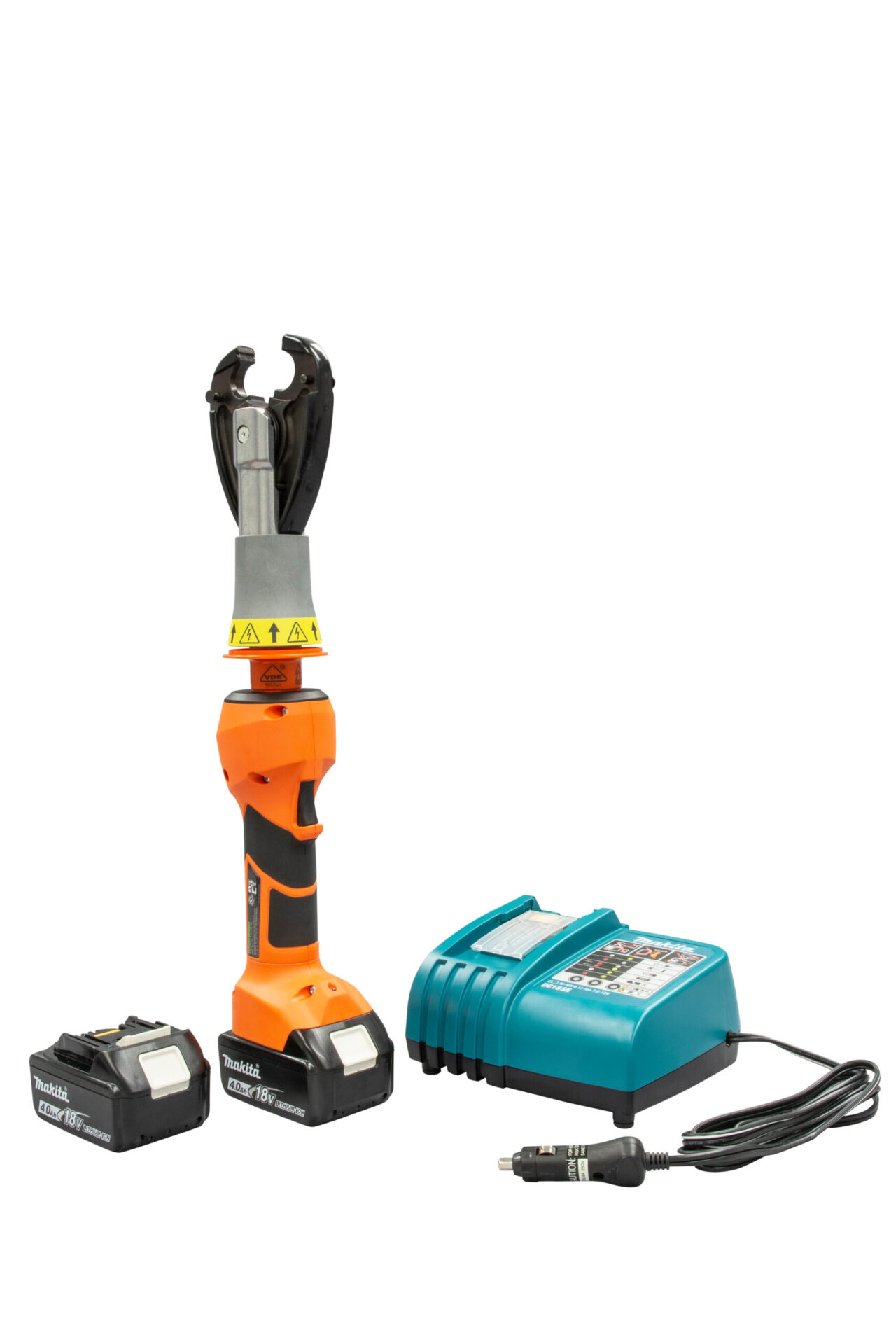

CRIMPER, 6T V, CJD3, 12V

$3,080.10

Gator 6 Ton Crimping Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specificationsState of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle timesLED light provides the operator with the battery charge and tool maintenance statusIn Line tool style is light weight and very easy to controlOne trigger controls all tool functionsCrimping head rotates 350&#176Tools automatically retract when the crimping cycle is completeOver molded tacky grip areas make gripping the tool easier and more comfortableLED work light illuminates dark work areasGreenlee battery-powered crimping tools now use bio-degradable oilSmart chargers control the charging current, charging voltage and battery temperature to maximize battery lifeAccepts Greenlee KC22 and KA22 series crimping diesIncludes 04292 die adapters which can be used with all industry “W” style crimping dies and Greenlee KD6 style diesAvailable with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
To view more info on the Greenlee site Click Here

Description

Sub Brand : Gator Type : Die style crimper Application : 6 Ton Crimping Standard : C/US UL Listed, IEC 62481-1; VDE, CSA, MET Tested Overall Length : 19 IN (482mm) Crimping Force : 12,000 lbs. (53 kN) Crimping Capacity : Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 – 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR Connector Type : Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices Handle Type : In-Line Style with over molded rubber grip
To view an Operator’s Manual Click Here
To view a Catalog Sheet Click Here
To view a Brochure Click Here

Additional information

Weight 15 lbs
Dimensions 23 × 12.08 × 9.02 in
Catalog #

EK425VXD12

Material #

52086672

UPC/Ean #

7.8331E+11

Sold in Quantities of

1
