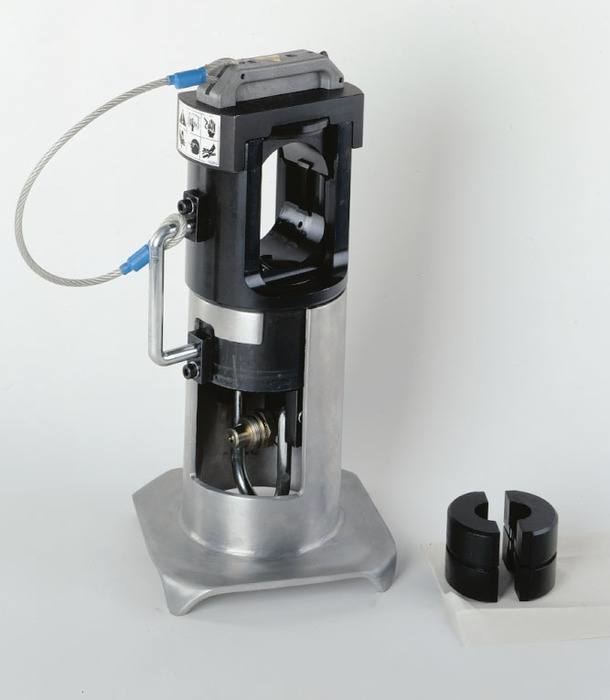

Description
Application : For Use In Substation And Transmission Construction Capacity : 300 -2000 KCMIL Copper Stranded Code Cable, 250 – 2000 KCMIL Aluminum Stranded Code Cable, 1/0 AWG – 1000 KCMIL Copper Tension Sleeves, 1/0 AWG – 2300 KCMIL Aluminum Tension Sleeves, 1/0 AWG – 2156 (Bluebird) KCMIL ACSR Tension Sleeves, 4/0 AWG – 2500 KCM Crimping Force : 120000.000 LB (530.000 KN) At 10000 PSI Height : 17.000 IN (432.000 MM) Includes : Steel Carrying Case With Storage Space For Dies Oil Volume Required : 0.75 PT (312 CC) Operating Pressure : 10000 PSI (700 BAR) Type : Single Acting Weight : 45.000 LB (20.000 KG) Width : 6.000 IN (153.000 MM)
To view an Operator’s Manual Click Here
