CRIMP TOOL INS DLS AT 230V CH

$5,738.50

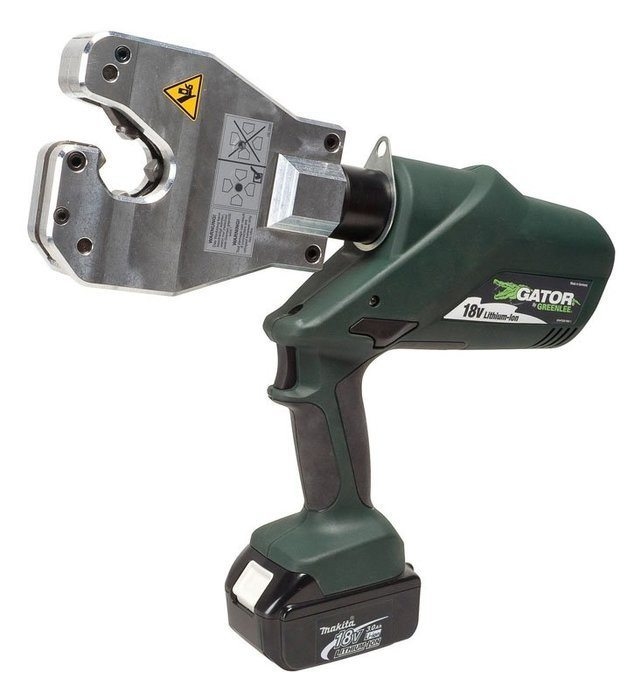

Gator 12 Ton Crimping Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time
To view more info on the Greenlee site Click Here

Description

Accessory : 52178 UPC 52178 120 V Charger Battery : 18 V, 3.0 AMP-HR Lithium-Ion Battery Charge Time : 1 Hour Crimping Capacity : 6 AWG – 500 KCMIL Copper Lugs And Copper Splices, 6 AWG – 400 KCMIL Aluminum Lugs And Aluminum Splices Crimping Force : 12400.000 LB (55.000 KN) Overall Length : 14.000 IN (355.000 MM) Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger Standard : C/US UL Listed Sub Brand : Gator Type : Battery Powered, Open Rubber Covered Head, Quad Point Dieless Weight : 12.000 LB (5.400 KG)
To view an Operator’s Manual Click Here

Additional information

Weight 24.15 lbs
Dimensions 22.2 × 19.5 × 6.7 in
Catalog #

EK06ATCL22

Material #

52048012

UPC/Ean #

7.83311E+11

Sold in Quantities of

1
